UbiBot GS1-A
Industrial-grade IP65-water-resistant cloud-based WiFi data logger for temperature, humidity, and ambient light monitoring
- Description
- External Probes & Accessories
- UbiBot Cloud IoT Platform
- Specifications
- Downloads and Documents

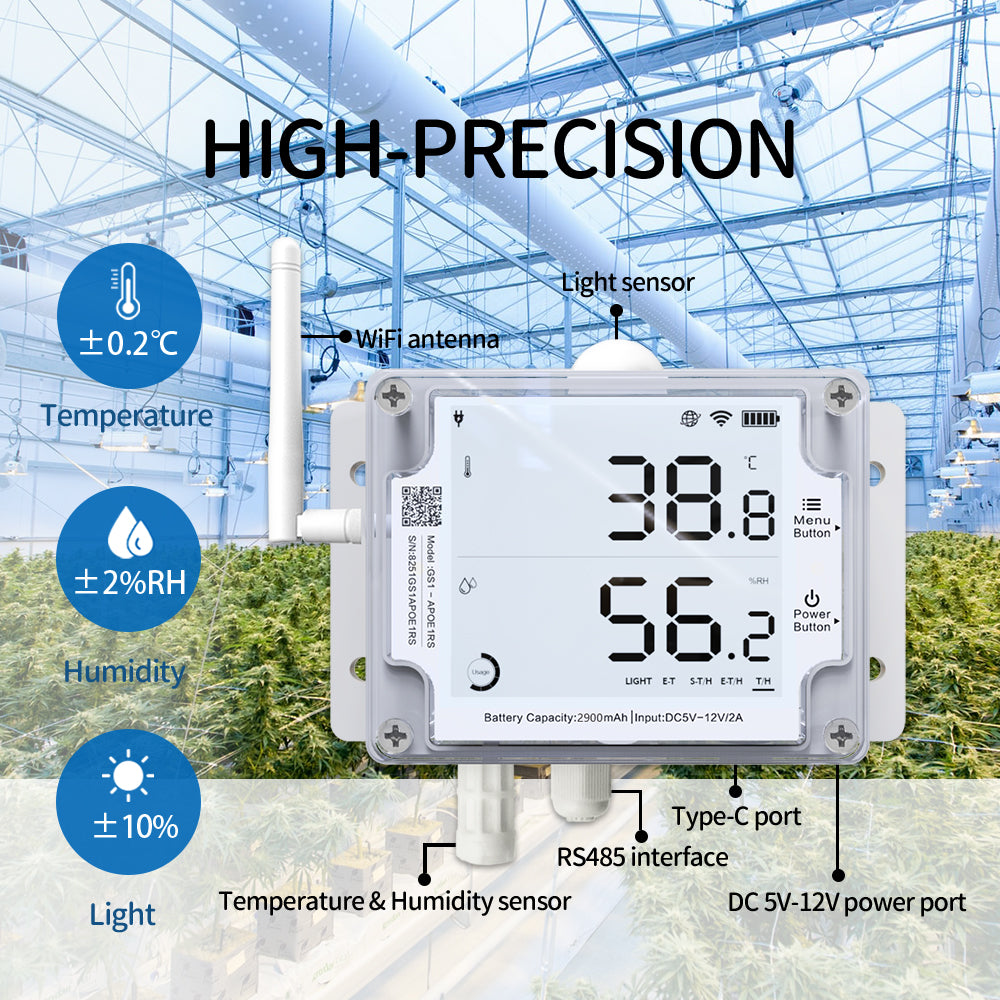

UbiBot ® Windustrial-grade GS1-A is a cloud-based WiFi environmental monitoring data logger. With a WiFi connection and built-in temperature and humidity sensors, it detects environmental data all day round and automatically syncs data to the UbiBot ® IoT cloud platform, so you can access data and monitor the environment remotely from anywhere in the world via the free UbiBot APP or Web Console and to receive real-time alerts. It is IP65 dustproof and water-resistant, can adapt to harsh environment.
The clear 4” LCD screen allows you to instantly view the latest data.
It cannot support any external probes.
The device supports three types of power supply: internal lithium battery, Type-C 5V (USB cable provided), and DC 12V (not included). The 2900mA lithium battery ensures a long working time.
Features:
- Built-in temperature and humidity sensors
- 2.4 GHz WiFi network connection, no need of hubs or gateways
- Industrial-grade shell, strong and durable; IP65 dustproof and water-resistant for harsh environment
- 4” high-quality LCD screen displaying current environmental conditions
- Free App & Web Console to access and monitor real-time data remotely, no subscription fee
- Unlimited UbiBot cloud storage for historical data; free historical data export
- Multiple ways of receiving real-time alerts: App notifications, emails, phone calls, SMS, HTTP
- Working with IFTTT, Google Sheet, Alexa
- Easy setup with free UbiBot App or PC tools
- Memory with a capacity of 300,000 records stores all data even if the network is temporarily disconnected, which ensures there are no gaps in the data history.
- Three types of power supply: internal lithium battery, Type-C 5V (USB cable provided), and DC 12V (not included)
- Compliance with CE, EN 12830, FCC, FDA CFR21, IC, RCM, RoHS, TELEC
Note:
- GS1-A can’t support any external probes.
- GS1-A can only work with a 2.4 GHz WiFi network. 5 GHz WiFi is not supported.
- GS1-A is IP 65 waterproof, but not resistant to high humidity over 90%
|
External probes not supported. |
| Solar Cell Panel | More details |
| 12V Power Adapter |
UbiBot ® offers a revolutionary way to monitor environmental conditions where they matter. The sensors synchronize data to UbiBot ® IoT Platform using WiFi, Cellular or Ethernet connection (depending on the specific model purchased). Users can then access data from anywhere via a smartphone or the Web console.
Features:
-
Data Management: Manage all your IoT data in one place; you could add as many devices as you want to one UbiBot account.
-
Unlimited Storage: Unlimited cloud-based storage ensures you will never run out of space. This allows you to view all your historical data via UbiBot App or Web.
-
Free App & Web Console: Using UbiBot App and Web Console is free. Powerful and thoughtful features provide you brilliant experience.
-
Analysis and Visualization: Use powerful analysis and visualization tools to get the most out of your data; spot trends and direct comparisons.
-
Real-Time Alerts: Fully customizable alert system will notify you via App notifications, emails, phone call/SMS, HTTP whenever any metric goes out of the range preset.
-
Highly Secure Platform: UbiBot IoT platform is designed to keep all your data secure so you never have to worry about hackers or other security issues.
Working with IFTTT, Alexa, Google Assistant, Google Sheet
-
Compliant with FDA CFR21
Details:
Real-time and history data
The UbiBot Platform is a cloud-based IoT platform where all measured data is uploaded and stored. UbiBot App and Web Console allow you to view current data as well as historical data in graphs. The adjustable Y-axis scale allows you to view any tiny fluctuations in the curve.
Customizable alerts and bulk operation
Setting and receiving alerts on your devices helps you to get notified of the conditions timely. When you have many devices to manage, it’s time-consuming to set each alert rule one by one. Therefore, we’ve developed a bulk operation module with which you can set the same rule for many devices at a time.
Free data export
On UbiBot Platform, you can download the history data in CSV or PDF format. The CSV file only contains raw data, while the PDF file is a summarized report with average, maximum and minimum value within the chosen period. The PDF file is much easier to read and archive.
Device sharing and bulk operation
For business users, centralized control over multiple devices is available, with no limit on the number of devices in one account. Also available are bulk operations that apply to sensor settings, alerts, and remote control routines. Devices can be shared with other people, which allows for distributed management by different colleagues.
Intelligent automation in UbiBot platform
UbiBot is committed to building intelligent industrial and home ecosystems. By integrating temperature and humidity sensors and the smart plug SP1 in one system, automated operation is achieved through data linkage. For example, fans can be switched on when the temperature rises to 30 °C.
Data forwarding
UbiBot is an open platform that provides cloud-based services while supporting customers to use their own storage servers. With the data forwarding service, you can forward the data collected by your device to your own private URL to protect privacy.
Location tracking and logging
UbiBot GS1-PL4G1RS is embedded with GNSS (Global navigation satellite system) for positioning. Through mobile data communication, real-time location information is transmitted to the platform and recorded. The UbiBot platform integrates this data, plots it into a trajectory map, and presents it.
Platform-based calibration
UbiBot platform supports data calibration both on the platform level as well as the device level. One-step calibration, instant display, no impact on historical data.
SIM card management
When using UbiBot Global SIM to transfer data, you can manage it by yourself. Unlike other SIM cards with a standard monthly fee and traffic amount, our SIM supports many types of plans. Choose the one that suits you now, and change to another next time. No arrearage and no extra charge.
Technical specifications
| Temperature | -20℃ to 60℃( -4℉ to 140℉) |
| Humidity | 10% to 90%, No condensation |
| Accuracy | Temperature ±0.2 ℃, humidity ±2% |
| Memory | 300,000 sensor records |
Network connection
| WiFi | 2.4GHz or 2.4/5GHz, channels 1-13 (5GHz WiFi NOT supported) |
Physical specifications
| Materials | Flame-resistant ABS + PC |
| Dimensions | 11.5 x 9 x 5.5 cm |
| Weight | 450g (± 3 g) |
| Colour | White |
| Screen | 4'' |
| Ports | 1 x Type-C |
| Power Source | Internal Lithium batteries (2900 mAh); Type-C 5V (USB cable included); DC 12V (not included) |
External probes supported
Not supporting any external probe
One single pack includes
1 x GS1-A device; 1 x external antenna; 1 x manual book; 1 x Type-C USB cable
| UbiBot GS1 User Guide | More details |
| UbiBot Cloud Platform User Guide | More details |
| UbiBot App User Guide | More details |
| UbiBot PC Tools User Guide | More details |
| UbiBot Cloud Platform Data Forwarding | More details |
| UbiBot On-Premises Platform | More details |
| Using UbiBot with Alexa | More details |
| Using UbiBot with IFTTT | More details |
| Data Sheet |
